Fast AGPS Supported GNSS GPS Module with Quick Positioning in Cold Start and High Sensitivity for Quick TTFF in Challenging Conditions

Product Categories

Shenzhen Youwei Communication Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : Guangdong, China

Model Number : YW-35254G3

MOQ : 100

Price : $3-4

Dimensions : 35x25x4mm

Sensitivity : -147dBM~ -162dBm

Positioning Accuracy : <2.5m

Communication Interface : I2C, USB, SPI, UART

Tracking Accuracy : 2.5 meters

Tracking Sensitivity : -162 dBm

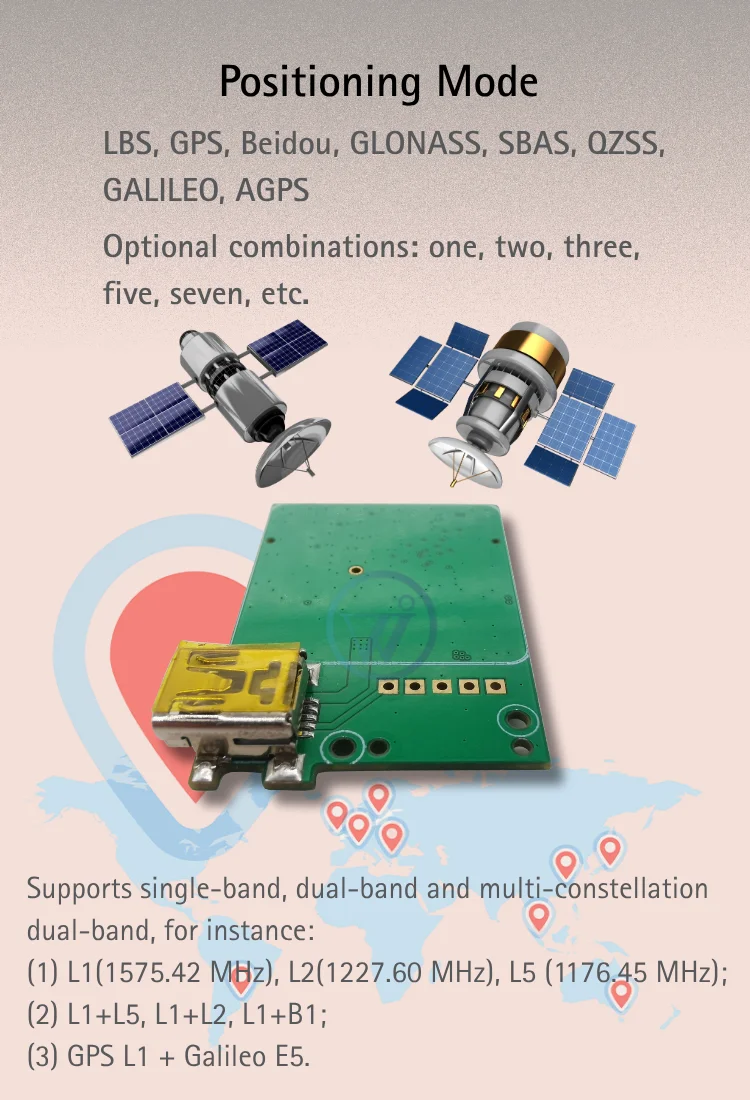

Supported Systems : GPS, SBAS, QZSS, GLONASS, BeiDou, Galileo

Update Rate : 1Hz ~ 10Hz

Voltage Range : 3V ~ 5V

Number of Channels : 32 to 99

Velocity : 515 m/s

Velocity Accuracy : 0.1m/s (without aid), 0.05m/s (DGPS)

TTFF : Hot start: 1s, Warm start: 28s, Cold start: 30s

Baud Rate : 9600 bps

Operating Temperature : -40°C to 85°C

Contact Now

Product Description

Parameters of YW-35254G3 GNSS GPS Locating Module

Item	Parameters
Item No.	YW-35254G3
Brand	Youwei
Chip	As per order
Frequency	GPS L1 C/A SBAS L1 C/A QZSS L1 C/A GLONASS L1OF BeiDou B1 Galileo E1B/C² Customized
Number of Channels	32 to 99, As per order
Positioning Accuracy	2 meters to 5 meters
Velocity	515 m/s
Velocity Accuracy	Without aid : 0.1m/s DGPS: 0.05m/s
TTFF (Time-To-First-Fix)	Hot start: 1 second typical Warm start: 28 seconds typical Cold start: 30 seconds typical
Sensitivity	Tracking Sensitivity: -162 dBm Acquisition Sensitivity: -160 dBm typical Cold Start:-147dBm
Baud Rate	9600 bps (default)
Navigation Update Rate	1Hz (default), maximum 10Hz
Timing Accuracy	25 ns RMS
Interface Type	UART, I2C, SPI, USB
Data Output Format	NMEA 0183
Power Supply	3.3V ~ 5V
Operating Supply Current	Typical 25mA
Environment Temperature Range	-40°C to 85°C
Antenna Type	patch ceramic antenna
AGPS	Supported
Product Size	35x25x4mm
Package Type	SMD
Origin of Country	China
White label	Acceptable

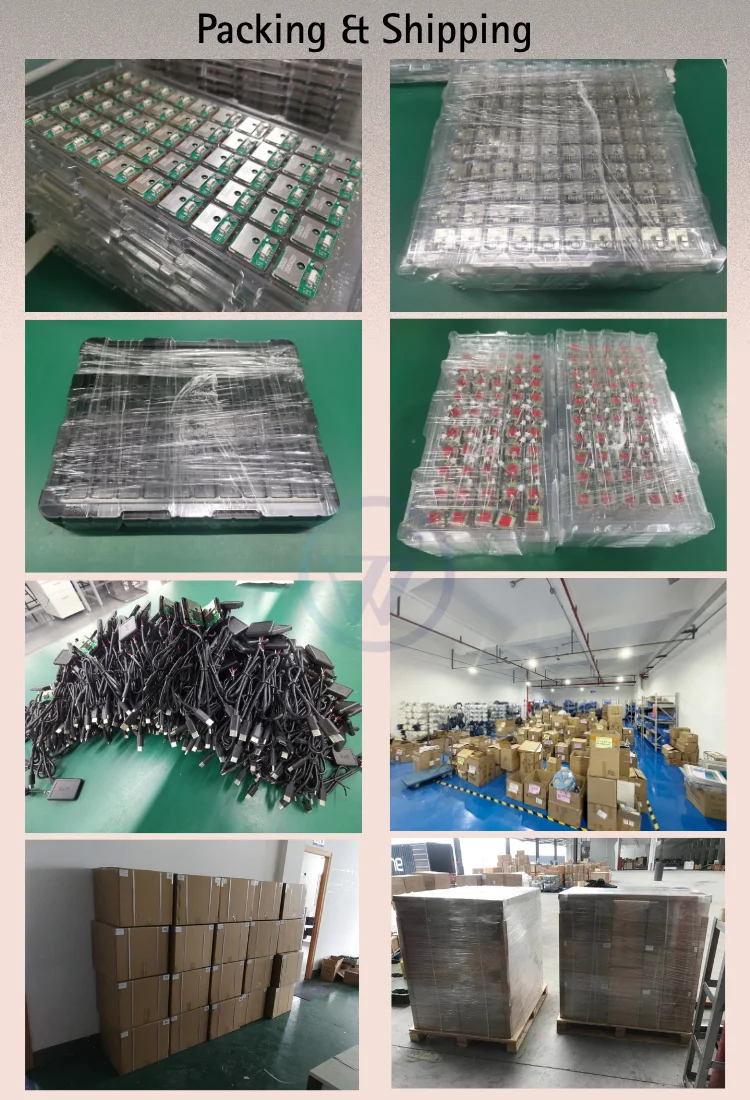

Packing way	Tray/Reel/Tube

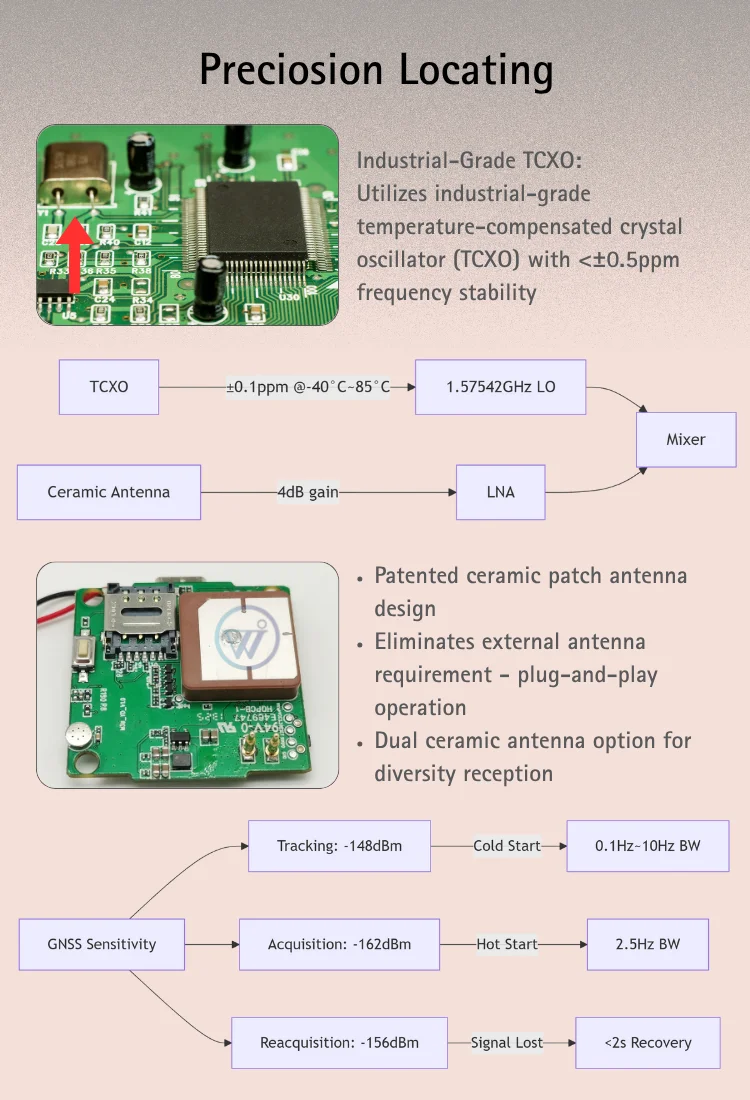

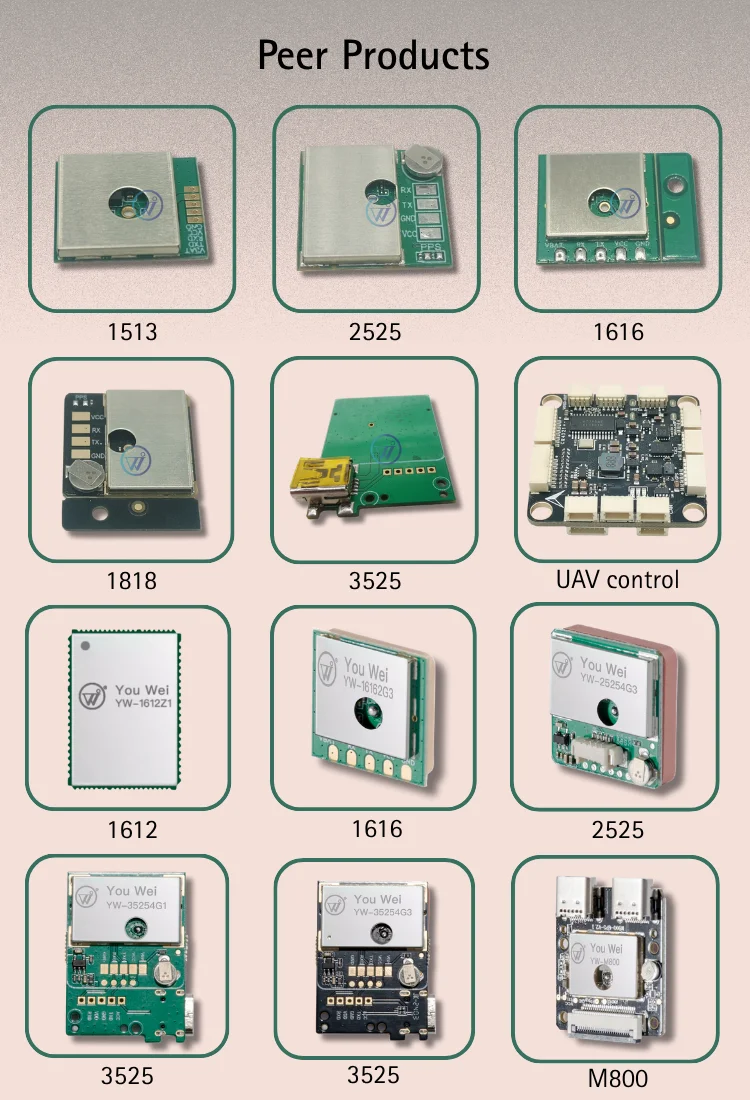

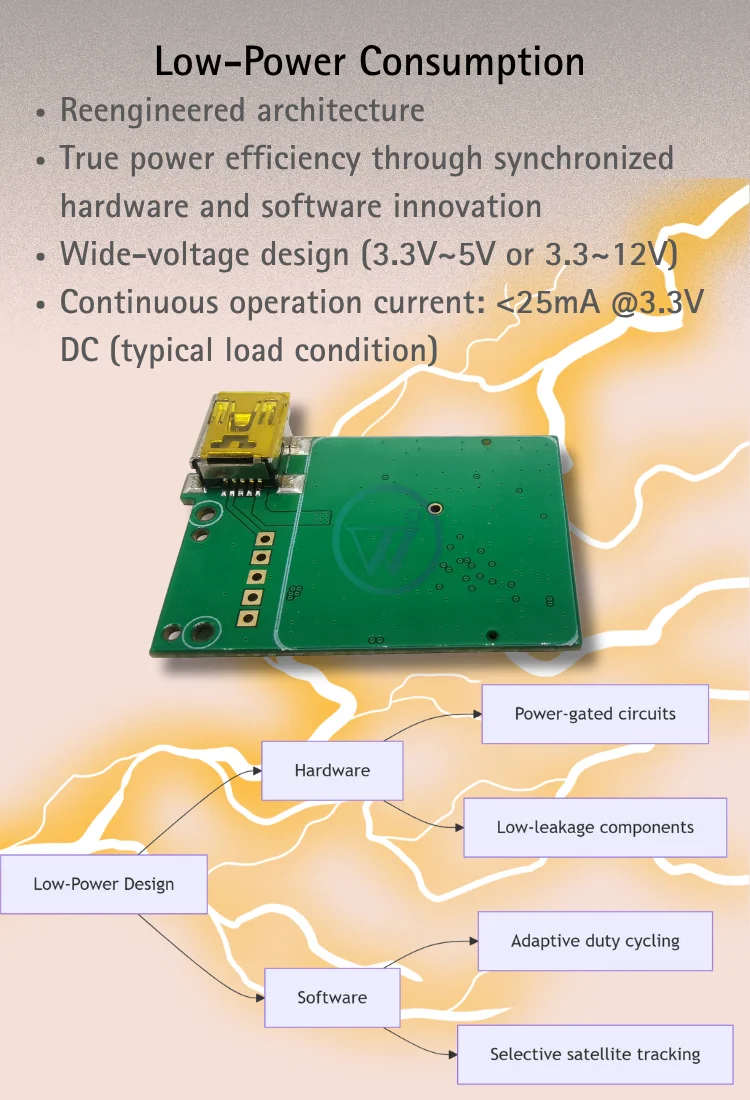

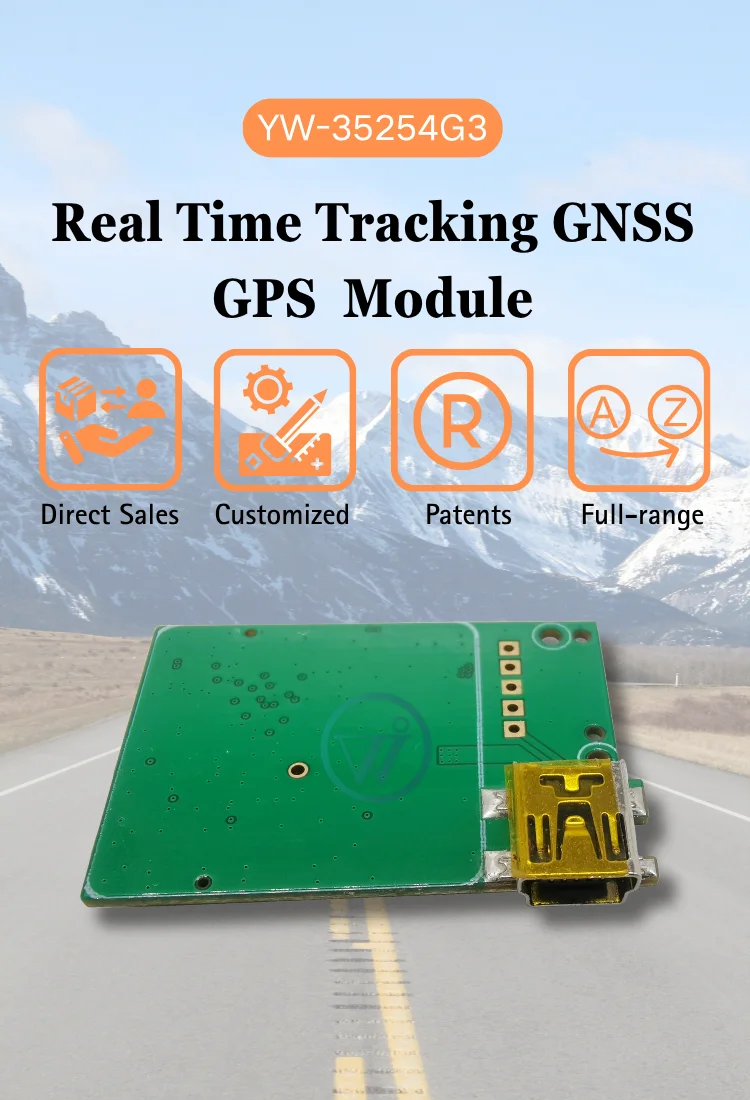

Product Picture

Quick Positioning GNSS GPS Module
